Dakota Holley EFI Interface Module BIM-01-2-HLLY

Dakota Digital Holley EFI Interface Expansion Module - BIM-01-2-HLLY

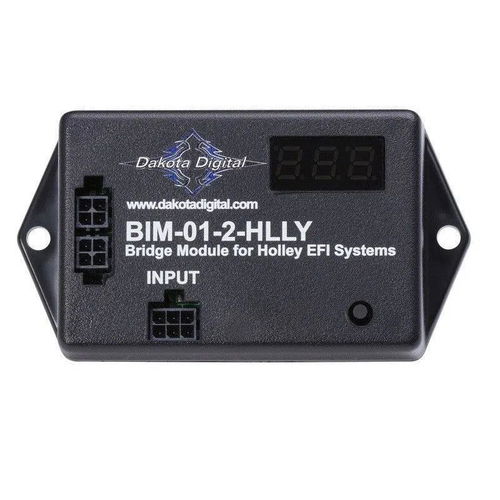

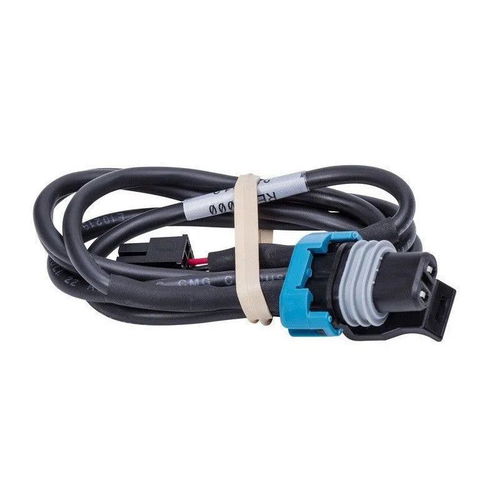

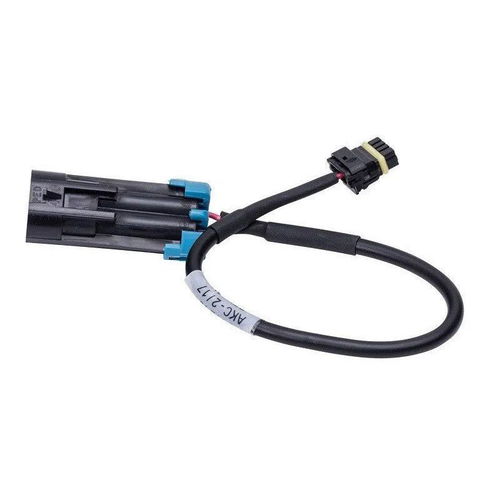

The BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator, HP or Dominator EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the Holley EFI system.

Not compatible with the Sniper EFI system.

The BIM-01-2-HLLY will collect and output the following information to Dakota Digital Instrument Systems*:

Always Available:

• Tachometer
• Engine Coolant Temp
• Intake/ Manifold Temp.
• Fuel Pressure
• Air/ Fuel Ratio

Please note: Due to the various factory and modified ECM's, additional data add-on's from Holley may be available such as Vehicle Speed, Oil Pressure and Boost. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors.

*The BIM-01-2-HLLY is designed to decode the information provided by the Holley Terminator, HP and Dominator EFI's (not Sniper) and supply this information to the VFD3 rev. G, VHX and HDX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules
