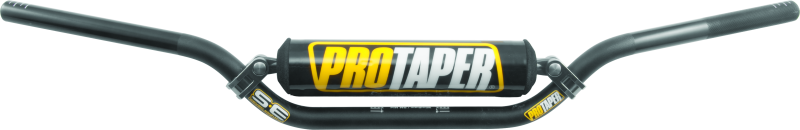

The Pro Taper SE bar is Pro Taper’s seven eighths inch diameter handlebar designed for riders who still prefer the look, feel, and stability of a bar with a cross brace. Constructed of 5mm, 2000 series T6 aluminum, with a cold forged aluminum brace, the Pro Taper SE bar is a great choice for anyone searching for a high quality, value priced handlebar.
Product | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
---|---|---|---|---|---|---|
CR High | 800 | 95 | 67 | 233 | 60 | 186 |
CR Low | 800 | 71 | 55 | 231 | 68 | 195 |
CR Mid | 800 | 82 | 56 | 230 | 57 | 195 |
Carmichael | 800 | 77 | 40 | 188 | 56 | 206 |
Factory Suzuki / KTM Stock | 800 | 92 | 61 | 233 | 47 | 190 |
Henry / Reed | 800 | 92 | 60 | 225 | 57 | 186 |
KX High | 800 | 107 | 70 | 223 | 54 | 184 |
KX Low | 800 | 71 | 54 | 231 | 60 | 195 |
Pastrana MX / RM Low | 800 | 74 | 54 | 228 | 55 | 189 |
RM High | 800 | 82 | 53 | 223 | 73 | 195 |
Windham / RM Mid | 800 | 99 | 69 | 243 | 54 | 189 |
YZ High | 800 | 84 | 53 | 222 | 52 | 195 |
YZ Low | 800 | 67 | 48 | 219 | 70 | 195 |
SX Race | 800 | 87 | 54.5 | 216 | 54 | 195 |
Measurements are provided by the manufacturer and do not guarantee a perfect fit for your bike.
